Description

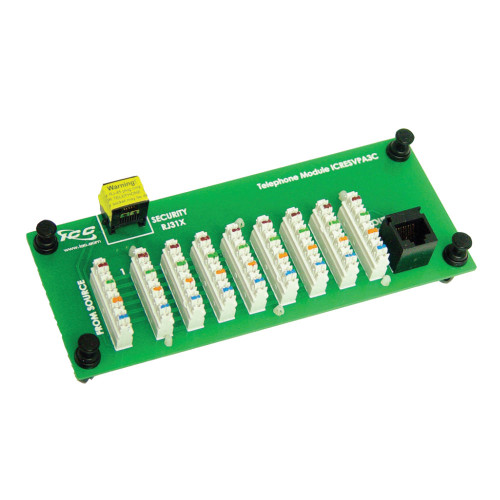

ICC’s residential compact voice module has a printed circuit board design that comes with four lines in and four lines out to 8 different locations. The module is integrated with an RJ-31X (RJ-45 port) that is compatible with most security and alarm systems.
Features
- Designed to support up to 4 incoming telephone lines with 8 outputs/extensions.
- Module bridged using 2 incoming lines can get 16 outputs/extensions per line.
- 1 incoming line can get 32 outputs/extensions.
- Includes an RJ31X jack connected to line 1 for a security system.
- Includes an expansion jack to provide additional outputs/extensions by connecting to an 8-port telephone resi module using expansion jacks.
- Fits all 14”, 21”, and 28” Net Media Center.
- ANSI/TIA-568-C and UL1863 compliant.
Specifications
8 Port Telephone Module with RJ31X Jack:
- PCB: Glass Epoxy FR-4 copper clad, t=1.20mm
- 110 Block:
- Housing: PC, UL 94V-0
- IDC: Phosphorous Bronze, Tin Plated
RJ45 and RJ31X Jack/Socket:
- Housing: PBT 15% Fiber Glass
- Contact: Phosphorous Bronze, 50u” Gold Plated
- Wiring in Accordance with T568A Standard
Locking Button:
- Material: Nylon 6/6, UL 94V-0
Additional Information
- Shipping Weight: 0.32 lbs
- Shipping Dimensions (L x W x H): 6.85 × 3.3 × 2 in
- Product Type: Modules
- Module Type: 8-Port Voice Module with RJ-31X – PCB
- Connectivity: Voice
- Style: PCB
- RJ-31X: With RJ-31X
- Ports: 8
- Packaging: Single
- Country of Origin (subject to change): China
