Product Description

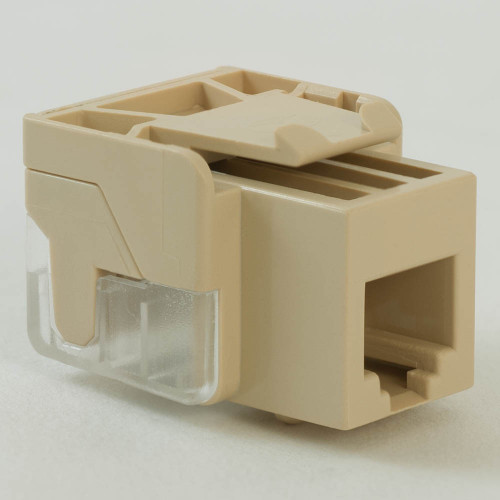

Voice RJ11 Keystone Jack for EZ® Style - 10-Pack
The EZ voice modular jacks, RJ-11 keystone jacks 6-position 6-conductor (6P6C), is designed for business system applications. The modular jacks utilize IDC termination, accepts 22-24 AWG solid wire. Termination can be done using 110 punch down tool, or by using the Jackeasy termination tool for fast and easy termination. For use with applications: Apple Talk, Voice, and Arcnet. Compatible with RJ11/14 and 25 keystone jacks and plugs.
Features
- Designed for all voice connectivity applications.
- Lead frame technology provides maximum performance.
- Terminate with 110 punch down tool.
- Includes an integrated USOC/UTP color wiring diagram.
- Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
- Works with all telephone line cords.
- Installation instructions included.
- UL listed.
Specifications
Material:
- Housing: ABS, UL 94V-0
- Contact: Phosphor bronze Alloy plated with 50 micro inches of gold over 70-100 micro inches of nickel
Electrical:
- Current rating: 1.5 amps max
- Voltage rating: 150 volts alternating
- Dielectric withstanding voltage: 1000 volts RMS, 60Hz
- Insulation resistance: >10 mohms
Mechanical:
- Mated force: 5 lbs max
- Unmated force: 5 lbs max
- Plug retention force: 20 lbs min
- Durability: 750 cycles
- Gold plating: 1.27 micron/50 micro inch min
- Connector: insulation displacement connector (IDC) accepts 22-24 AWG solid wire
Termination Cap:
- Material: PC, UL 94V-0
- Color: Clear
Color:
- Color XX: AL-Almond, BK-Black, BL-Blue, GY-Gray, IV-Ivory, & WH-White
Additional Information
- Shipping Weight: 0.17 lbs
- Shipping Dimensions (L x W x H): 9.8 × 7.4 × 8.2 in
- Product Type: Keystone Jacks
- Performance: Voice
- Connector: 6P6C
- Jack Style: EZ
- Color: Almond, Black, Blue, Gray, Ivory, Red, White
- Packaging: Single, 10-Pack, 25-Pack, 400-Pack with JackEasy Tool
- Country of Origin (subject to change): Taiwan
