Product Description

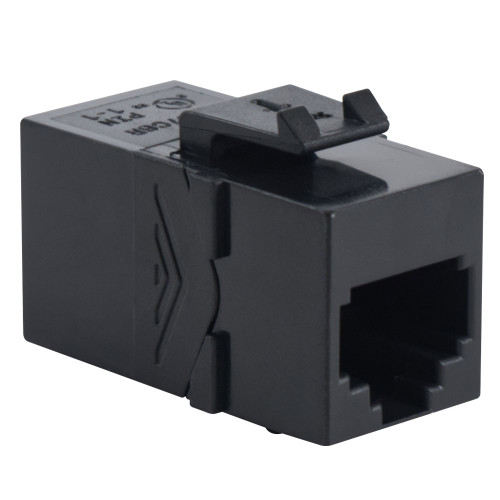

Voice RJ11 Keystone Coupler with Pin 1-1 for HD Style
The feedthrough in-line coupler modular jacks are 6-position 6-conductor (6P6C), connect two modular cords; Pin 1 to Pin 1. Compatible with RJ11/14 and 25 modular jacks and plugs.
Features
- Provides pin 1-1 RJ-11 voice coupling.
- Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area.
- Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
- Used with all line cords.
- UL listed.
Specifications
Material:
- Housing: ABS, UL 94V-0
- Contact: Phosphor Bronze Gold Plating Over 100 microinch Nickle
- Gold Plating: 1.27 micron/50 micro in min
Electrical:
- Current Rating: 1.5 amps max
- Voltage Rating: 150 volts alternating
- Dielectric Withstanding Voltage: 1000 volts RMS, 60 HZ
- Insulation Resistance: > 10 mohms
Mechanical:
- Mating Force: 5 lbs max
- Unmating Force: 5 lbs max
- Plug Retention in Jack: 20 lbs min
- Durability: 750 cycles
Color:
- Color XX: BK-Black, WH-White
Additional Information
- Shipping Weight: 0.01 lbs
- Shipping Dimensions (L x W x H): 7.25 × 6.3 × 4 in
- Product Type: Keystone Jacks
- Performance: Voice
- Connector: 6P6C
- Pin: 1-1
- Jack Style: HD
- Color: Black, White
- Packaging: Single
- Country of Origin (subject to change): Taiwan
