Description

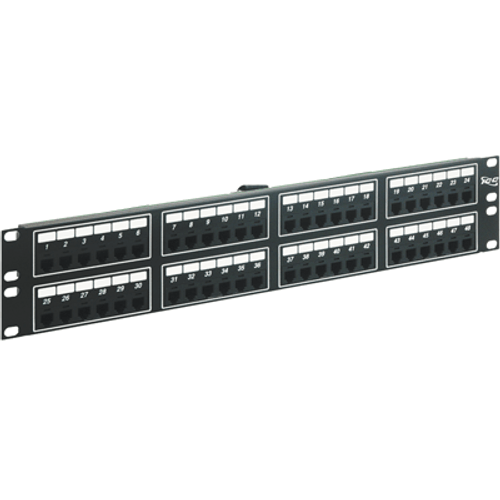

ICC’s Telco-style 48-port patch panels consist of 2-wire RJ-45 USOC-wiring scheme are ideal for PBX phone systems. Each patch panel connects to 48 RJ-45 patch cords on the front and link phone system with 50-pin Telco connectors on the back. Each 50-pin male Telco connector comes with hook and loop ties that are seated in a socket to secure 25-pair cable for either 90 degrees or 180 degrees cable exits. Each patch panel also features front write-on labeling area for port identification.
Features
- Rack mountable 48 port, RJ-45, 8 positions with 2 conductors.
- Integrated male 50-pin Telco connector(s).
- Designed to fit all standard 19″ racks or cabinets, 1 RMS or 2 RMS.
- Ideal for KSU or PBX phone systems.
Specifications
Material:
- 48 Port Patch Panel: 16 GA CRS
- Jack Housing: ABS, UL 94V-0
- Spring Wire: Square Spring Wire, Tempered Phosphor Bronze
- Gold Rating: 50 micro inch of Gold over 100 micro-inches of Nickel
- Surface Finish: Black Powder Coat
Additional Information
- Shipping Weight: 2.34 lbs
- Shipping Dimensions (L x W x H): 20 × 4.25 × 3 in
- Product Type: Telco Panels
- Performance: Voice
- Connector: 8P2C
- Telco Connector Gender: Male
- Ports: 48
- Mounting: Rack
- Rack Space: 2
- Packaging: Single
- Country of Origin (subject to change): Taiwan
