Description

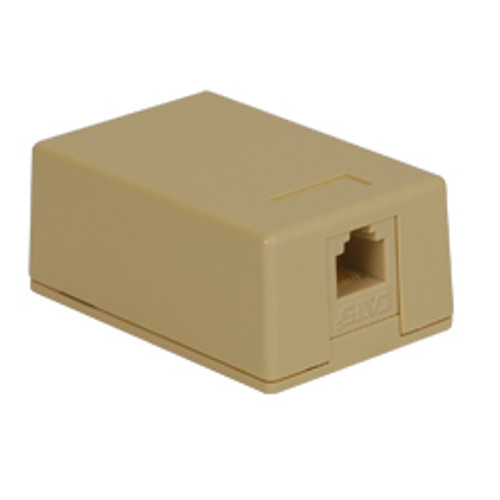

ICC’s Pre-Loaded Surface Mount Boxes are available with voice RJ-11 and Category 5e RJ-45 loaded with EZ style jacks. They are designed to save installer time and reduce the need for multiple parts. These are ideal for mounting on multiple surfaces such as horizontally and vertically in a space with restriction areas so patch cords may exit sideways or downward.
Features
- Provides a clean modular surface mount outlet solution for voice, data.
- Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts.
- Ideal for installation where mount boxes and faceplates are not practical.
- Multiple mounting options including double-sided adhesive backing and screws.
- Recessed area for ID label.
- Rugged and durable construction.
- Fully loaded and ready for installation.
- Rear opening and side knockouts for cable entry or exit.
- Integrate cable tie holes to secure cable.
Specifications
Material:
- Material: ABS, UL 94V-0
Physical:
- Jack wiring: 50 micro inches of gold over 100 inches of nickel
- Connector: 22~24 AWG solid wire
Electrical:
- Current Rating: 1.5 amps
- Insulation Resistance: 500 mohms min
- Contact Resistance: 20 mohms max
- DC Resistance: 0.1 ohms max
Mechanical:
- Plug Insertion life: 750 cycles min
- Plug & Jack Contact Force: 100 grams min
- Force: 30 lbs min
- Temperature: -40 degrees C to 150 degrees F
Color:
- Color XX: IV-Ivory, WH-White
Additional Information
- Shipping Weight: 0.09 lbs
- Shipping Dimensions (L x W x H): 9.5 × 7.25 × 8.25 in
- Product Type: Surface Boxes
- Style: Classic
- Performance: CAT5e
- Kitted: 8P8C
- Connector: 8P8C
- Jack Style: EZ
- Ports: 1
- Color: Ivory, White
- Packaging: Single
- Country of Origin (subject to change): Taiwan
