Product Description

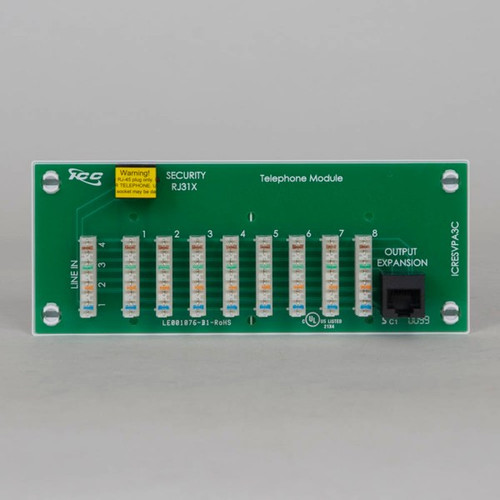

8-Port Telephone Module with an RJ-31X Jack and Universal Mounting Base
ICC’s residential voice module has a printed circuit board design that comes with four lines in and four lines out to 8 different locations. The module is integrated with an RJ-31X (RJ-45 port) that is compatible with most security and alarm systems.
Features
- Designed to support up to 4 incoming telephone lines with 8 outputs/extensions.
- Module bridged using 2 incoming lines can get 16 outputs/extensions per line and using only 1 incoming line can get 32 outputs/extensions.
- Includes an RJ31X jack connected to line 1 for a security system.
- Includes an expansion jack to provide additional outputs/extensions by connecting to an 8-port telephone residential module using expansion jacks.
- Universal mount with attached self-adhesive hook and loop strips for easy mounting on flat surfaces.
- ANSI/TIA-568-C and UL1863 compliant.
- Installation instructions are included.
Specifications
1. 8 Port Telephone Module with RJ31X Jack:
A. PCB: Glass Epoxy FR-4 copper clad, t=1.20mm
B. 110 Block:
1. Housing: PC UL 94V-0
2. IDC: Phosphorus Bronze, Tin Plated
C. RJ45 & RJ31X Jack/Socket:
1. Housing: PBT + 15% Fiber Glass
2. Contact: Phosphorous Bronze, 50µ Gold Plated
D. Wiring in accordance with TIA-568A standard
2. Bracket
A. Material: ABS
B. Surface Finish: White Powder Coat
Additional Information
- Shipping Weight: 0.3 lbs
- Shipping Dimensions (L x W x H): 6.85 × 3.3 × 2 in
- Product Type: Modules
- Module Type: 8-Port Voice Module with RJ-31X – Universal Mount
- Connectivity: Voice
- Style: Universal Mount
- RJ-31X: With RJ-31X
- Ports: 8
- Packaging: Single
- Country of Origin (subject to change): Taiwan
